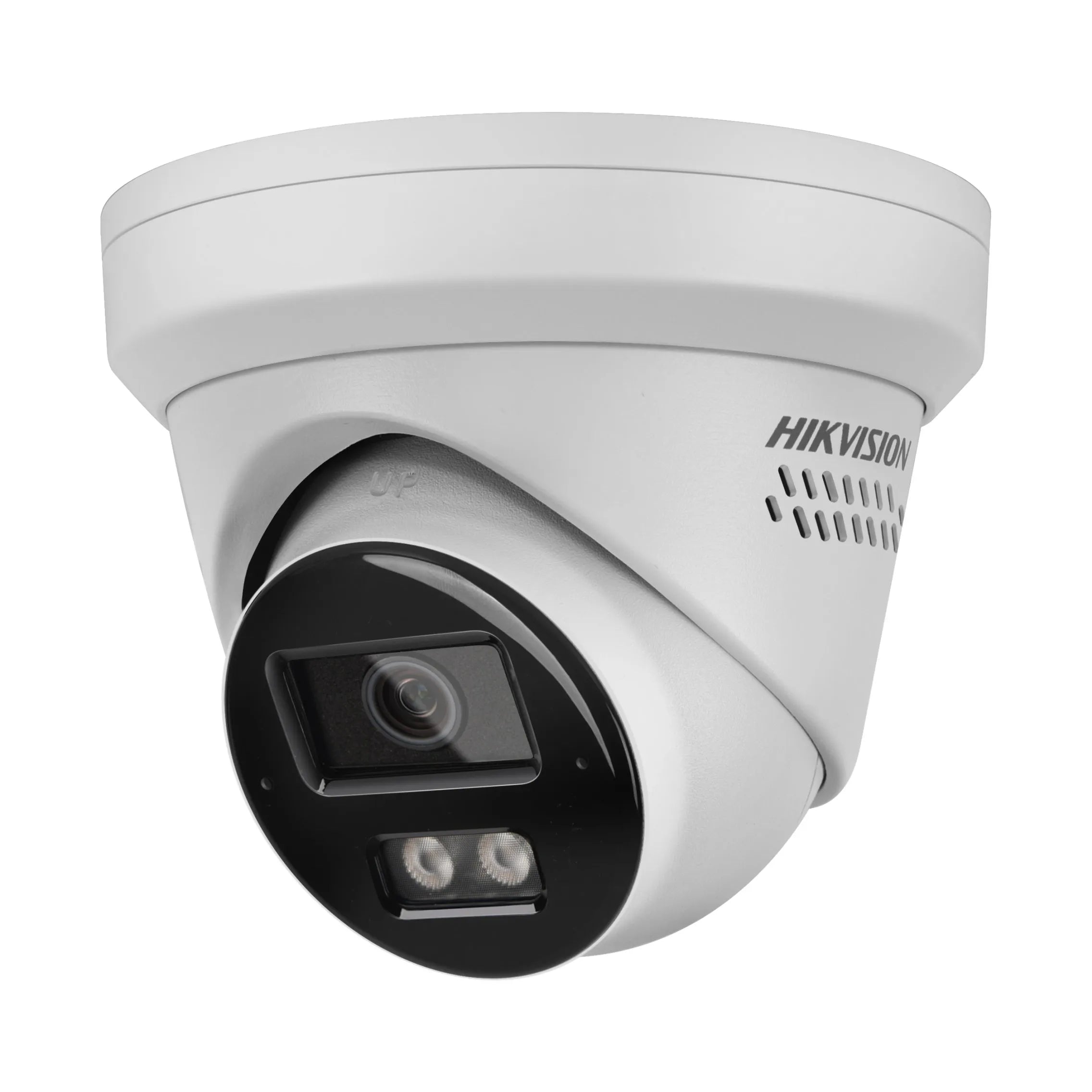

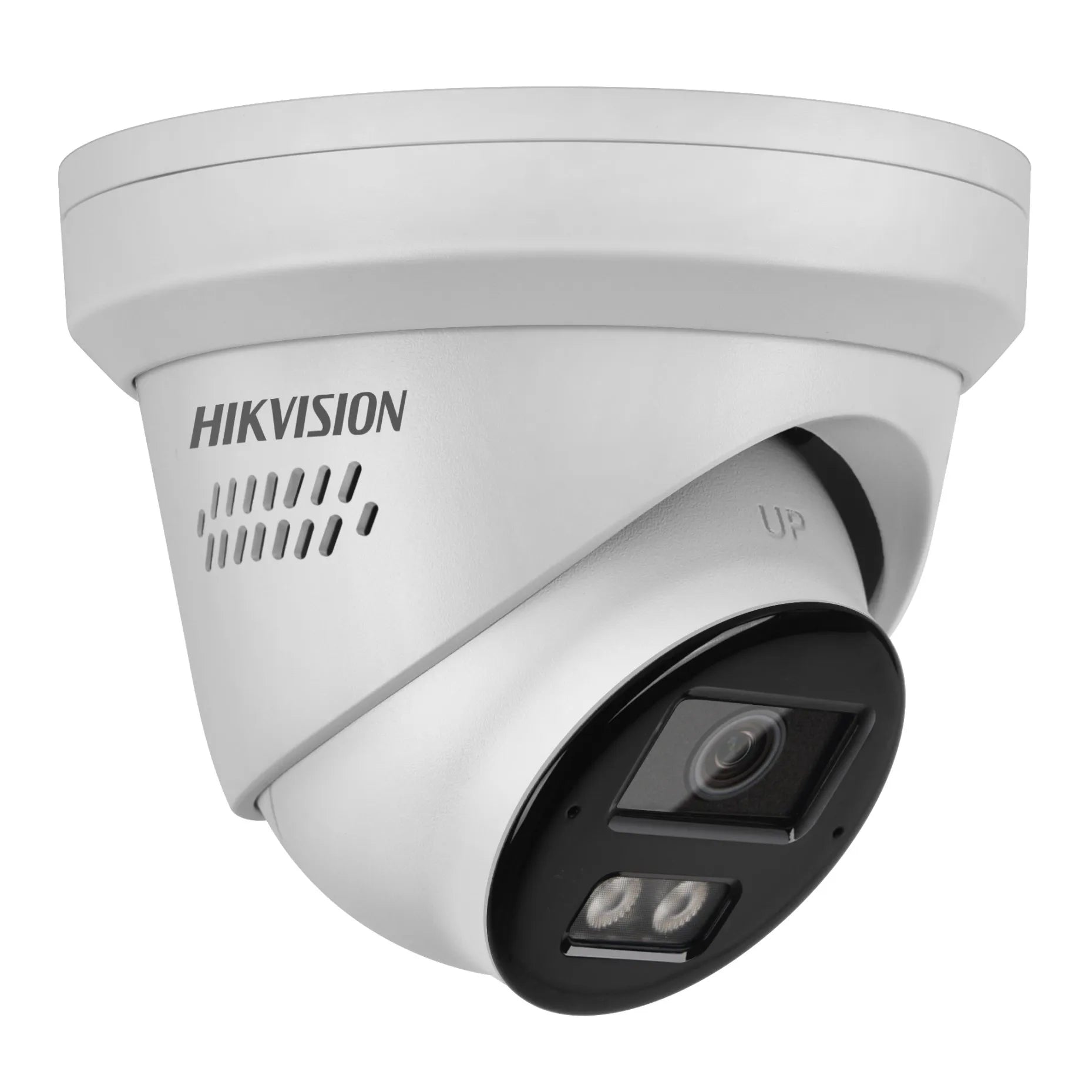

Hikvision 8MP IP Camera DS-2CD2383G2-LI2U/SRB Smart Hybrid Light Arrayed Mic Speaker Turret Acusense Red and Blue Light Warning

$200.00

$200.00 $163.30

SPECIFICATIONS

AI Functions: Human Detection

Audio Output: 1CH BNC

Brand Name: HIKVISION

Certification: CE

Color: WHITE

Color Night Vision: Yes

Connectivity: IP/Network Wired

Dimensions (L x W x D)(mm): 127.3 mm * 96.3 mm

High Definition: 8.0 Megapixels

High-concerned chemical: None

IP Rating: IP67

IR Distance(m): White Light Up to 30 m

Installation: ceiling,Normal

Internal Storage: None

Lens (mm): 2.8mm

Lens Quantity: Single Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0 Lux with white light

Model Number: DS-2CD2383G2-LI2U/SRB

Operating Temperature: -10°-60°

Origin: Mainland China

Power Consumption(W): 8.5 W

Power Mode: Mains Electricity

Power Supply: With Poe

Power Supply(V): DC12V/POE (802.3af)

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Metal

Smart home platform: Other

Special Features: Waterproof / Weatherproof

Style: Turret Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 7,Windows Vista,Windows 98,Windows 8,Windows XP,Windows 2008,Windows 2000

TF Card: None

Video Compression Format: H.265,MJPEG,H.264

Viewing Angle : 100°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: None

is_customized: No

DS-2CD2383G2-LI2U/SRB

4K Ultra HD Surveillance Camera – Professional Security Solution

8 MP Acusense Strobe Light and Audible Warning & Smart Hybrid Light Fixed Turret Network Camera

- High quality imaging with 8 MP resolution
- AcuSense: Focus on person and vehicle classification based on deep learning
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Built-in arrayed dual-microphone for real-time high quality audio security
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- Active strobe light and audio alarm to warn intruders off

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV

2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°

4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°
Lens MountM12
Iris TypeFixed
ApertureF1.6
Depth Of Field

2.8 mm: 1.7 m to ∞

4 mm: 2.6 m to ∞
DORI
DORI

2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m

4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m
Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm
Video
Main Stream

50 Hz:

20 fps (3840 × 2160)

25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Bit Rate ControlCBR,VBR
Region Of Interest (ROI)1 fixed region for main stream and sub-stream
Target CroppingYes
Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
User/Host

Up to 32 users

3 user levels: administrator, operator, and user
ClientiVMS-4200,Hik-Connect,Hik-Central
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web Browser

Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters SwitchYes
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR
Privacy Mask8 programmable polygon privacy masks
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset KeyYes
Built-In Speaker1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
AudioBuilt-in Microphone: Arrayed dual-microphone
Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,strobe light flashing
Deep Learning Function
Perimeter Protection

Line crossing, intrusion

Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 1.25 A, max. 15 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3at, Class 4, max. 18 W
MaterialMetal
DimensionØ127.3 mm × 96.3 mm (Ø5" × 3.8")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5")
WeightApprox. 590 g (1.1 lb.)
With Package WeightApprox. 820 g (1.7 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Flashing Light

SRB models: Red and Blue Light

Other models: White Light
Approval
EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015
Safety

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

LOA: IEC/EN 60950-1
Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
